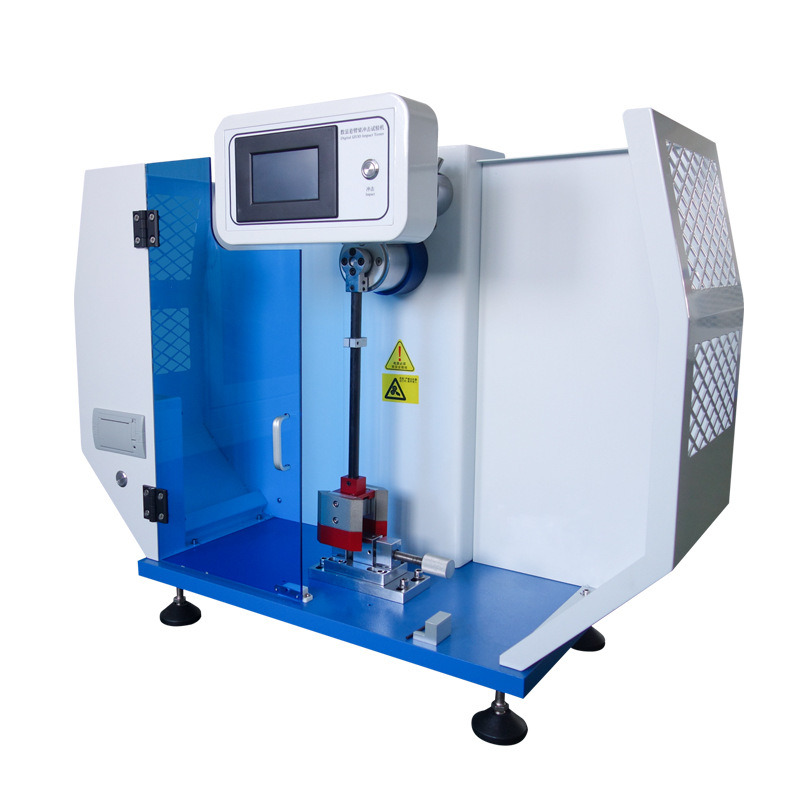

Cantilever Digital pendulum impact testing machine izod impact tester price PJ-XBL-11B

1 Piece
MOQ
$1,800.00(1 - 10 pieces) $1,600.00(11 - 20 pieces) $1,400.00(>=21 pieces)
Precio
Cantilever Digital pendulum impact testing machine izod impact tester price PJ-XBL-11B
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 years
Customized support: OEM
Model Number: PJ-XBL-11B
Power: Electronic
Product name: Cantilever impact testing machine
Weight: 80KG
Power supply: 220V 50Hz
Model: PJ-XBL-11B
Blade radius: 0.8mm
Impact speed: 3.5m/s
Angle of the blade: 750
Certificate: CE ISO
Información básica
Certificación: CE ISO
Model Number: PJ-XBL-11B, PJ-XBL-11B
Pago y Envío Términos
Packaging Details: 1pc, Wooden case for outsdie packing
Descripción de producto
Products Description
This instrument is a new type of multi-functional cantilever beam and simply supported beam integrated impact testing machine. It does not need to disassemble the fixture and sample holder. The cantilever beam and simple beam test method are automatically switched. It is easy to use, simple to operate and high in test accuracy. It is mainly used for the determination of the impact toughness of non-metallic materials such as rigid thermoplastic molding and extrusion materials, hard thermosetting molding materials and fiber-reinforced thermosetting and thermoplastic composites.

Technical Parameters：
Impact energy
The cantilever beam 11J, 5.5J or maximum impact energy is specified by the user.
Pendulum pre-angle
1500
Power supply
AC 220V 50Hz
Dimensions
360 × 240 × 680mm
Net weight
about 80kg
Impact speed
3.5m/s

Distance from the center of the pendulum shaft to the center of the specimen

327mm
Angle of the blade
750
Blade radius
0.8mm
Blade rake angle
50
Blade back angle
100
Sample type and size
(length × width × thickness) mm3
ISO180-2000 or GB/T 1843-2008:
Type 1 sample: 80 × 10 × 4
Type 2 sample: 63.5 × 12.7 × 6.4
Type 3 sample: 63.5 × 12.7 × 3.2
