Name: PVC Pipe IZOD & Charpy Impact Testing Machine Quality PVC Pipe IZOD and Charpy Impact Testing Machine
Brand: PVC Pipe IZOD & Charpy Impact Testing Machine Quality PVC Pipe IZOD and Charpy Impact Testing Machine
SKU: CZT3250
Price: 1 USD
Availability: InStock
Rating: 5 (140 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Warranty: 1 YEAR

Customized support: OEM

Model Number: CZT3250

Power: Electronic

Function: PVC Pipe IZOD & Charpy Impact Testing Machine

Impact Method: Charpy And Izod

Impact energy: Charpy:7.5J, 15J, 25J, 50J IZOD:5.5J, 11J, 22J

Energy Accuracy: 0.5 %

Impact speed (m/S): Charpy:2.9; 3.8 IZOD:3.5

Power supply: 1 Phase, 220V, 50Hz/60Hz

Certificación: CE

Información básica

Certificación: CE

Model Number: CZT3250

Pago y Envío Términos

Packaging Details: Standard Export Wooden Case

Supply Ability: 150 Unit/Units per Month

Descripción de producto

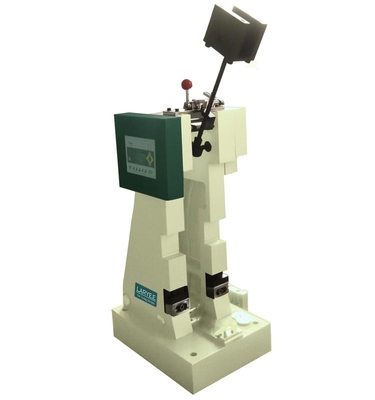

This machine adopts the technology of photoelectric encoder to examine angle, the whole digital measures the material absorption energy and impact intensity of the material in the course of breaking, and possess intact energy and lose detection and revision function. High precision and stability, large test range. The tester is a kind of whole digital impact testing machine. By changing the weight at the end of pendulum it can get many kinds of test energy.

Model	CZT 3250
Impact Method	Charpy	IZOD
Impact energy	7.5J, 15J, 25J, 50J	5.5J, 11J, 22J
Energy Accuracy	0.5 %
Impact speed (m/S)	2.9; 3.8	3.5
Pendulum moment	Pd7.5 = 4.0192 Nm /Pd15 = 8.0385 Nm Pd25 = 13.397 Nm/ Pd50 = 26.795 Nm	Pd5.5 = 2.94744Nm/ Pd11 = .8949Nm Pd22 = 11.7898Nm
Raising angle	150°	150°
Round angle radius	R=2mm±0.5mm	R=0.8mm±0.2mm
Impact center distance	395mm	335mm
Power supply	1 Phase, 220V, 50Hz/60Hz
Dimension & Weight	550mm×350mm×850mm, 160kg
