Vertical Drop Impact Testing Device Drop Weight Testing Packing Test Equipment No Bigger Than 1000x800x1000mm

1.0 piece
MOQ
Vertical Drop Impact Testing Device Drop Weight Testing Packing Test Equipment No Bigger Than 1000x800x1000mm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 year
Customized support: OEM, ODM, OBM
Model Number: HRT-DL
Power: Electronic
Quality: high quality
Delivery: in 1 week
Payment: t/t
warranty: one year
Standard: ISO2248
drop height: 300-1500mm
weight of sample: not larger than 80kg
size of sample: not larger than 1000x800x1000mm
size of the plate: 1700x1200x10mm
Tester Dimension: 1700x1200x2300mm
Información básica
Model Number: HRT-DL
Pago y Envío Términos
Packaging Details: wooden box
Supply Ability: 500 Piece/Pieces per Week
Descripción de producto
Product Description

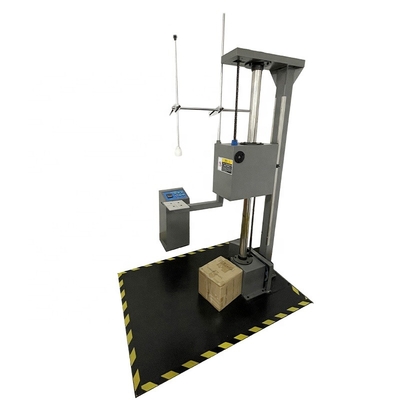

Vertical Drop Impact Testing Device Packing Testing Machine Drop Weight Test Equipment

Introduction:

This tester simulates the dropping or falling of a package to evaluate the damage. During the products handling or transportation, there may be dropping or falling, which may results in damage within the products, this tester can evaluate the impact resistance of a package according to ISO2248 standard.

All the angles and faces of the package can be tested, with digital height indicator and adopt decoder to track , which can give accurate product drop height, and the default drop height error does not exceed 2% or 10mm. The tester adopts single-arm or double-column structure, with electric reset, electric control and electric lifting devices drop, easy to use.

Specification:

Drop height 300mm—1500mm (adjustable)
Plate bearing weight 0-80Kg
The thickness of the bottom plate 10mm (solid iron plate)
Specimen size 1000 x 800 x 1000mm
Impact plate size 1700 x 1200mm
Drop height error ±10mm
External dimensions of the tester 1700 x 1200 x 2300mm
Power 1.85KWA
Power supply AC380V 50HZ
Test method face, corner and edge drop in all directions
