Name: XJ-50D XJ-50D Computer Control Charpy Izod Plastic Pendulum Impact Testing Machine
Brand: XJ-50D XJ-50D Computer Control Charpy Izod Plastic Pendulum Impact Testing Machine
SKU: XJ-50D
Price: 1 USD
Availability: InStock
Rating: 4.8 (157 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Warranty: 1 Year

Customized support: OEM

Model Number: XJ-50D

Power: Electronic

Pendulum Energy (Charpy): 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J

Pendulum Energy (Izod): 1J, 2.75J, 5.5J, 11J, 22J

Display Way: Computer Display

Impact Speed (Charpy): 2.9m/s, 3.8m/s

Impact Speed (Izod): 3.5m/s

Pendulum Angle: 160Â°

Fillet Radius Of Support Blades: R=1mm

Impact Blades Angle: 30Â°

Fillet Radius Of Impact Blades: R=2mm

Información básica

Model Number: XJ-50D

Pago y Envío Términos

Packaging Details: Standard Export Plywood Wooden Case

Supply Ability: 300 Set/Sets per Month

Descripción de producto

XJ-50D Computer Control

Plastic Charpy Izod Pendulum Impact Testing Machine

Product Description

Applications:

XJ-50D Computer Control Plastic Charpy Izod Pendulum Impact Testing Machine is computer

control and digital display type. Charpy impact and Izod impact, can be selected and combined

the each of energy pendulum arbitrarily.

Its Man-Machine dialogue very convenient, high precision, automatic display the impact energy,

automatic calculation the impact strength, can automatic calculate the average impact strength

of the entire set of samples, can delete data arbitrarily. This machine is electric release hammer.

Main Specification:

Model	XJ-50D
Pendulum Energy	Charpy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J
Pendulum Energy	Izod: 1J, 2.75J, 5.5J, 11J, 22J
Impact Speed	Charpy: 2.9m/s; Charpy: 3.8m/s; Izod: 3.5m/s
Pendulum Angle	160°
Distance Between Pendulum Center And Sample Center	Charpy: 221mm; Charpy: 380mm; Izod: 322mm
Fillet Radius Of Support Blades	R=1mm
Impact Blades Angle	30°
Fillet Radius Of Impact Blades	R=2mm

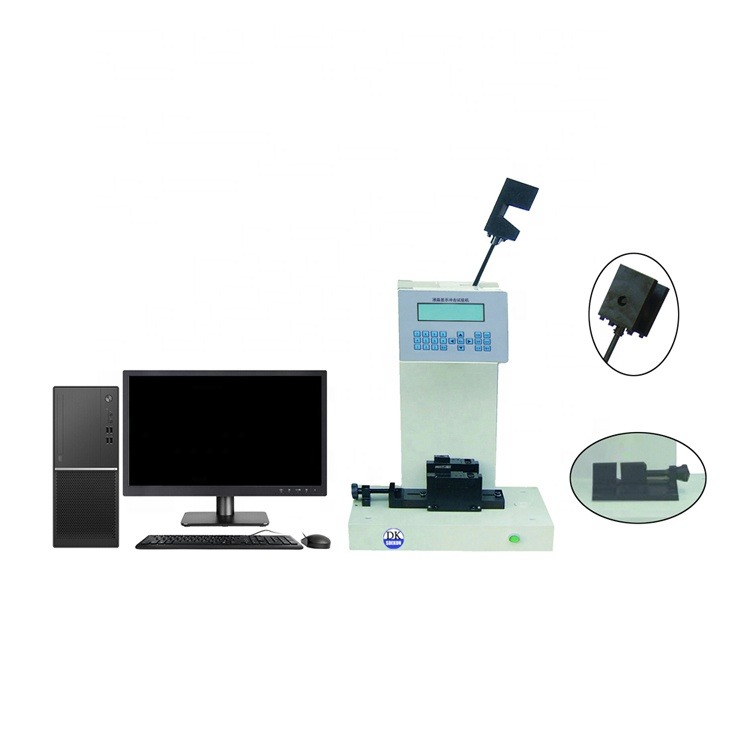

Product Physical Pictures:
