Name: Computer Control Plastic Izod Impact Testing Machine XJUD-22 XJUD-22
Brand: Computer Control Plastic Izod Impact Testing Machine XJUD-22 XJUD-22
SKU: XJUD-22
Price: 1 USD
Availability: InStock
Rating: 4.9 (132 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Warranty: 1 Year

Customized support: OEM

Model Number: XJUD-22

Power: Electronic

Pendulum Energy: 5.5J,11J,22J

Display Way: Computer Display

Impact Speed: 3.5m/s

Pendulum Impact Accuracy: 0.001J

Pendulum Angle: 160Â°

Fillet Radius Of The Blades: R=0.8mm

Información básica

Model Number: XJUD-22

Pago y Envío Términos

Packaging Details: Standard Export Plywood Wooden Case

Supply Ability: 300 Set/Sets per Month

Descripción de producto

XJUD-22

Computer Control Plastic Izod Impact Testing Machine

Product Description

1.Applications:

XJUD-22 Computer Control Plastic Izod Impact Testing Machine is computer control and digital

display type. Its Man-Machine dialogue very convenient, high precision, automatic display the

impact energy, automatic calculation the impact strength, can automatic calculate the average

impact strength of the entire set of samples, can delete data arbitrarily.

This machine is electric release hammer.

2.Main Specification:

Model	XJUD-22
Pendulum Energy	5.5 J	11 J	22 J
Impact Speed	3.5m/s
Pendulum Impact Accuracy	0.001 J
Pendulum Angle	160°
Distance Between Pendulum Center And Sample Center	322mm
Distance Of The Impact Blade To The Upper Plane Of Jaw	22mm
Fillet Radius Of The Blades	R=0.8mm

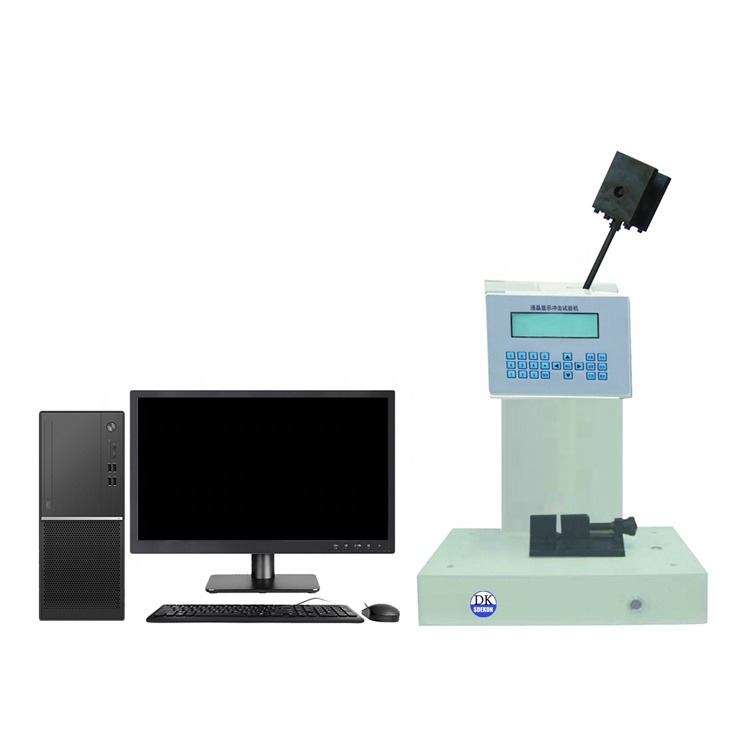

3.Product Physical Pictures:

Our Services

4.Order Operation Process:

5.Select The Different Transportation Way:

6.Sales Products All Over The World:

7.Alibaba Trade Assurance:

FAQ
